Product model：CY300BF/CY600BF/CY900BF
Lanes number：2-16 lanes
Bag size：L：50-180mm W：20-105mm
Film width&thickness：Max.300-900mm,0.07--0.1mm
Capacity：Max.20-40cycle/min/lane
Measuring Method：long auger、short auger、short auger with cup
Power supply：50HZ/AC220V/380V/3.5-7.5kw

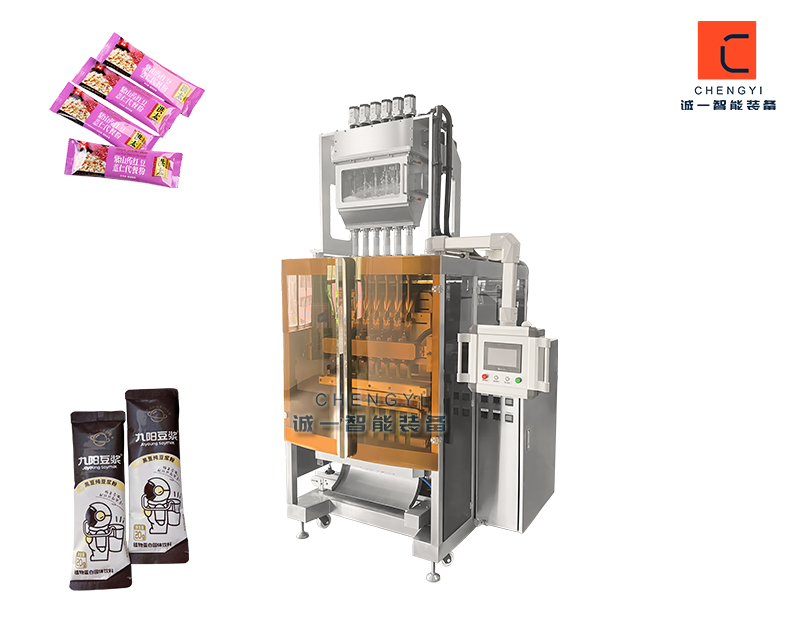

The fully automatic multi column back sealing powder packaging machine is suitable for the fully automatic packaging of powder or small powder in pharmaceutical, food, daily chemical, pesticide, hardware products and other industries. Such as: solid drinks, meal substitutes, nutrition powder, flour, starch, food additives, milk powder, soybean powder, protein powder, Chinese medicine powder, facial mask powder, pearl powder, coffee powder, cocoa powder, health tea powder, glucose powder, soda powder, papaya kudzu powder, etc.
We can help you find the goods you want by phone
Machine video introduction
Effect of packaging sample bag
Machine parameters
| Model | CY300BF | CY600BF | CY900BF | |
| Lanes number | 2-4 lanes | 3-10 lanes | 4-16 lane | |
| Capacity | 20--40 /Max.20-40cycle/min/lane | |||
| Bag size | L：50-180mm W：20-70mm | L：50-180mm W：20-95mm | L：50-180mm W：20-105mm | |
| Film width&thickness | Max.300mm,0.07--0.1mm | Max.600mm,0.07--0.1mm | Max.900mm,0.07--0.1mm | |
| Measuring Method | 1、long auger；2、short auger；3、short auger with cup | |||
| Sealing type | Back sealing/stick bag | Back sealing/stick bag | Back sealing/stick bag | |
| Cutting type | 1、平口 Straight cutting；2、Zig zag cutting 3、Round cutting；4、Die-cut | |||
| Power supply | 1N+PE/50HZ/AC220V/380V/3.5kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw | |
| Air consumption | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | |
| Dimension | 1385*918*2005mm | 1685*1300*2005mm | 1700*1600*2500mm | |
| Weight | 400kg | 600kg | 950kg | |
Machine details
